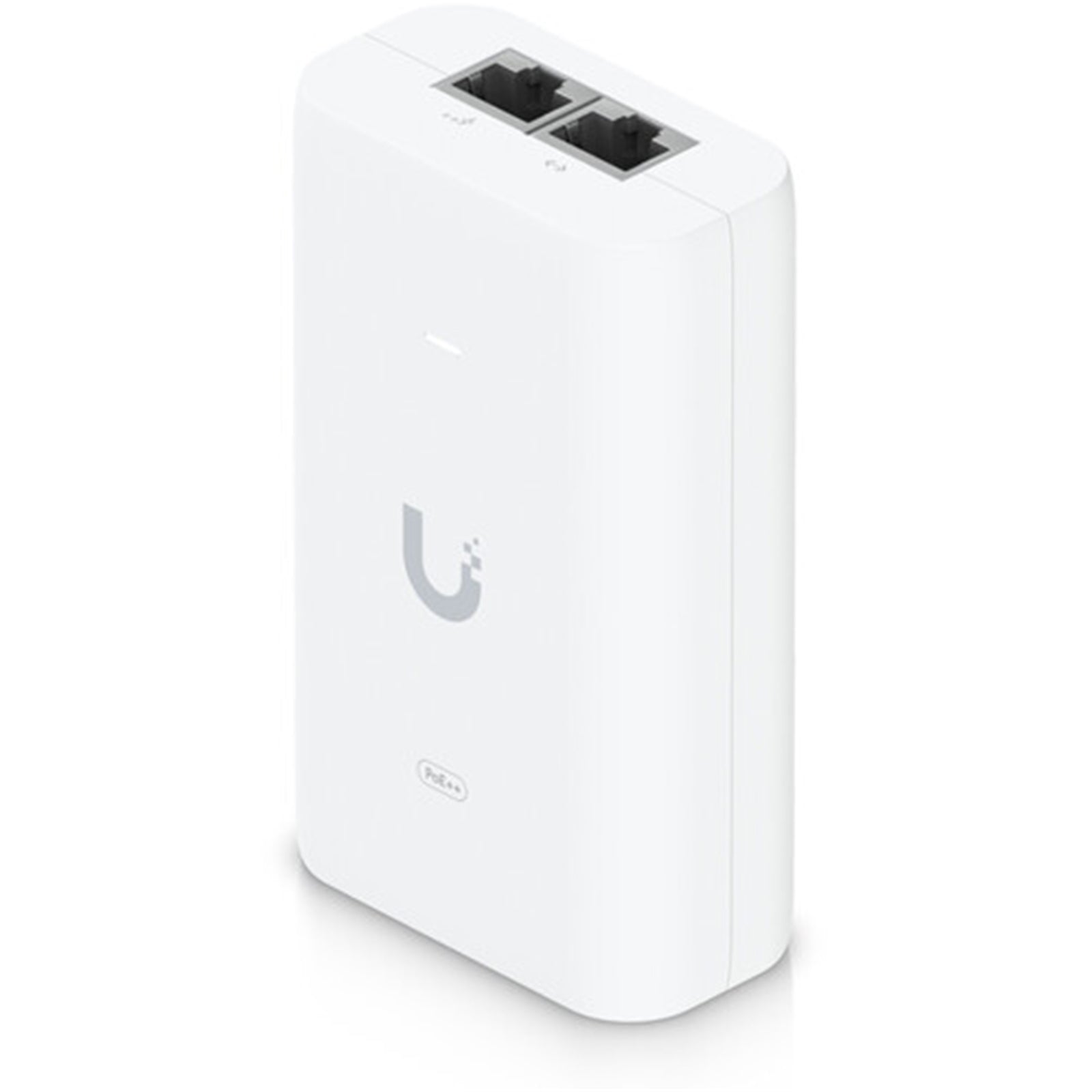

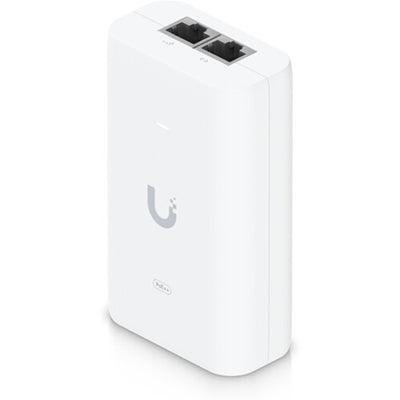

Ubiquiti UniFi U-PoE++ 60W PoE Injector

The Ubiquiti UniFi U-PoE++ Adapter delivers 60W of 802.3bt PoE++ power to UniFi devices, making it the ideal solution for wireless mesh deployments or when offloading power requirements from PoE switches. This compact injector provides reliable power delivery to demanding devices including the UA Hub, G4 PTZ cameras, and other PoE++ compatible equipment.

Power Delivery and Connectivity

The U-PoE++ outputs 48V DC at 1.25A, providing up to 60W of power through 4-pair powering on pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-). The integrated Gigabit LAN port ensures high-speed data transmission without bottlenecks. Operating on universal AC input from 100–240V at 50/60Hz, the adapter achieves over 85% efficiency with minimal output ripple of 1% maximum.

Protection and Reliability

Built-in surge protection covers both difference and common mode with clamping protection at 11V for data and 60V for power. The adapter handles maximum surge discharge of 1500A (8/20 µs) on power lines and peak pulse current of 36A (10/1000 µs) on data lines. Response time is under 1 nanosecond with shunt capacitance below 5 pF for data protection. Overcurrent protection mechanisms safeguard connected devices from power fluctuations.

Design and Installation

Measuring 106 x 63 x 34 mm and weighing 210g, the U-PoE++ integrates easily into various network configurations. The adapter features an RJ45 shielded socket for data input and PoE output, plus an IEC-320 C6 AC connector with earth ground. An LED indicator provides convenient status monitoring during operation.

Technical Performance

The adapter operates with a switching frequency of 65 kHz, maintaining line regulation at 1% and load regulation at 3%. Inrush current peaks at under 100A at 120V AC and under 200A at 230V AC. The unit functions reliably in operating temperatures from 0 to 40°C and humidity levels from 10 to 95% noncondensing.

Certifications and Compliance

The U-PoE++ holds CE, FCC, IC, UL, UKCA, KC, CCC, and RoHS certifications, ensuring compliance with international standards for safety and environmental responsibility.

Specifications

Model
U-PoE++

Dimensions
106 x 63 x 34 mm (4.2 x 2.5 x 1.3")

Weight
210 g (7.4 oz)

Output voltage
48V DC @ 1.25A

LAN activity indicator
No

Gigabit LAN port
Yes

Remote reset capability
No

Reset button
No

Rated voltage
100—240V AC @ 50/60Hz

Input current
1.3A @ 120V AC
0.75A @ 230V AC

Inrush current
<100A peak @ 120V AC
<200A peak @ 230V AC

Efficiency
85+%

Output ripple
1% max.

Switching frequency
65 kHz

Line regulation
= 1%

Load regulation
= 3%

2-pair powering
No

4-pair powering
Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)

AC connector
IEC-320 C6

Data In / PoE
RJ45 shielded socket

Surge protection
Difference and common mode

Clamping protection
11V data, 60V power

Max. surge discharge
1500A (8/20 µs) power

Peak pulse current
36A (10/1000 µs) data

Shunt capacitance
<5 pF data

Response time
<1 ns

Power method
Universal AC input, 100—240V AC, 50/60Hz, (48V@ 1.25A)

Power supply
AC/DC

Supported voltage range
100—240V AC

Max. PoE+ wattage per port by PSE
60W

Operating temperature
0 to 40° C (32 to 104° F)

Storage temperature
-30 to 70°C (-22 to 158° F)

Operating humidity
10 to 95% noncondensing

Certifications
CE, FCC, IC, UL, UKCA, KC, CCC, KC, RoHS

• Product Type: POE Injector
• POE Capability: 48v
• Device Support: Universal
