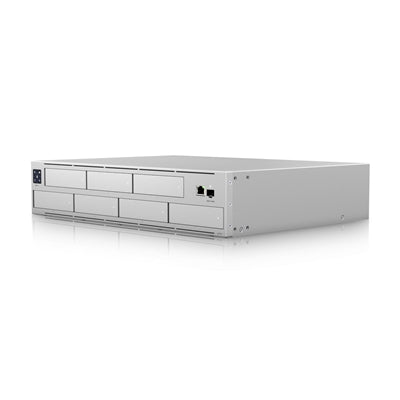

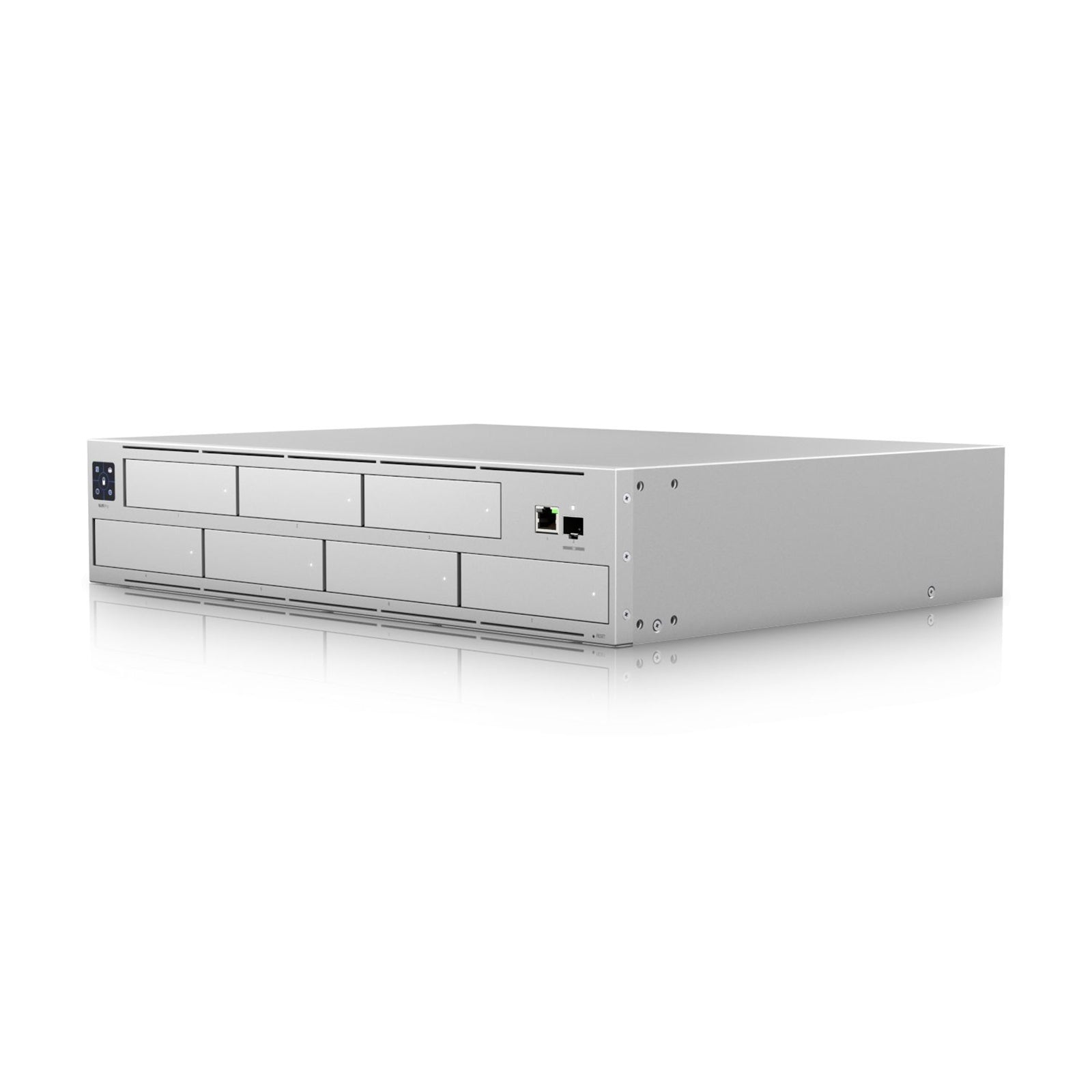

Ubiquiti UNVR-PRO Network Video Recorder

The UNVR-PRO is a business-grade network video recorder designed for professional surveillance deployments requiring extensive storage capacity and data redundancy. This 7-bay NVR provides up to 60 days of storage for 20 4K cameras or 60 1080p cameras, making it suitable for medium to large-scale security installations.

Storage and Data Protection

Equipped with seven 2.5"/3.5" hard disk drive bays, the UNVR-PRO offers the greatest storage capacity of any UniFi OS Console. The system features automated RAID configuration options including RAID 1, 5, or 10 based on the number of HDDs installed, providing enhanced data protection and redundancy for critical surveillance footage.

Network Connectivity

The UNVR-PRO includes a 10G SFP+ port for high-bandwidth network connections and a Gigabit RJ45 port for standard network integration. This dual-port configuration ensures flexible deployment options and sufficient bandwidth for managing up to 60 cameras simultaneously.

UniFi Protect Console

As a UniFi OS Console with pre-installed UniFi Protect application, the UNVR-PRO combines the benefits of cloud and onsite surveillance systems. Users gain centralized, local, low-latency access to all camera feeds and recordings, plus remote access from anywhere via unifi.ui.com and the Protect mobile app. Setup is simplified through Bluetooth-powered configuration using the UniFi Protect mobile app.

Professional Installation Features

The 2U rack-mountable design includes mounting hardware for standard server rack integration. The 1.3" touchscreen display provides convenient video event previewing directly on the device, allowing quick verification without accessing the full interface. For enhanced reliability, the UNVR-PRO can be connected to the USP RPS (sold separately) for power supply failover protection.

Technical Specifications

The Network Video Recorder Pro (UNVR Pro) is a business-grade network video recorder that provides data redundancy and long-term storage capabilities (up to 60 days of storage for 20 4K cameras or 60 1080p cameras)

The UNVR Pro is a UniFi OS Console that runs the pre-installed UniFi Protect application and has a 7-drive hard disk drive (HDD) bay that offers the greatest storage capacity of any UniFi OS Console. The powerful, easy-to-use UNVR Pro can be deployed in minutes and support systems with up to 60 cameras. Combining the best features of Cloud and onsite surveillance systems, UniFi Protect gives you centralized, local, low-latency access to all of your live camera feeds and recordings, as well as remote access from anywhere in the world via unifi.ui.com and the Protect mobile app.

The UNVR Pro also offers expanded RAID configuration options for enhanced data protection, applying either RAID 1, 5, or 10 based on the number of HDDs installed. It's also equipped with a 1.3" touchscreen display for concise, convenient video event previewing.

Features
(7) 2.5"/3.5" HDD bays
(1) 10G SFP+ port
(1) GbE RJ45 port
2U-sized, rack-mountable console (kit Included)
1.3" touchscreen with video event previewing
Pre-installed UniFi Protect application
Simple, Bluetooth-powered setup via the UniFi Protect mobile app
Automated RAID 1, 5, or 10 HDD configuration
Can be connected to the USP RPS (sold separately) for enhanced power supply failover protection

• Camera Resolution: N/A
• Camera Type: Accessory
• POE Capability: N/A
• Pack Size: Single
