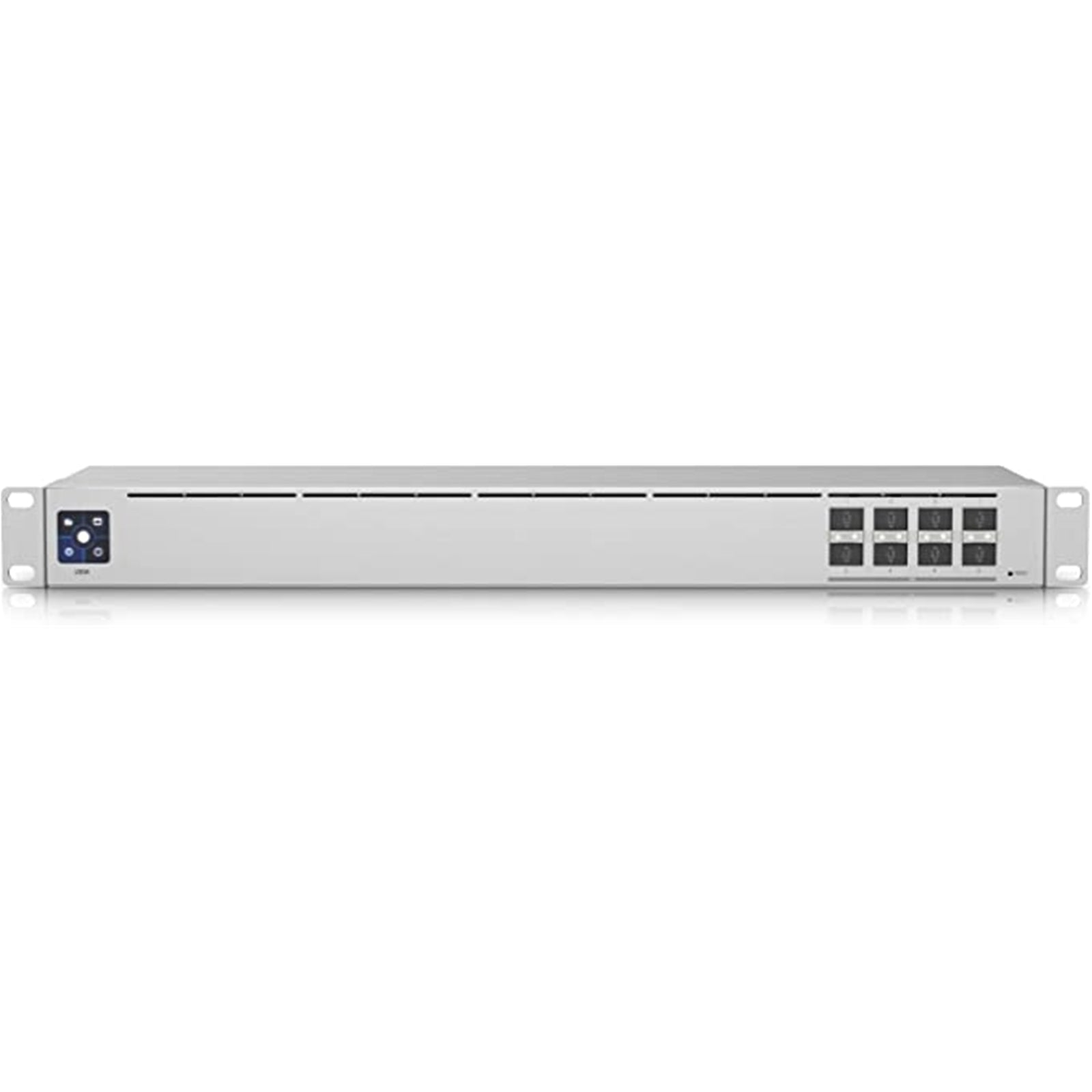

Ubiquiti UniFi Switch Aggregation (USW-Aggregation)

The Ubiquiti USW-Aggregation is a fully managed Layer 2 switch engineered for high-bandwidth aggregation applications. With eight 10G SFP+ ports delivering 160 Gbps switching capacity and 80 Gbps non-blocking throughput, this switch creates powerful aggregation links to enhance network switching capacity and performance.

Compact Fanless Design with Touchscreen Management

At just 4.7 inches deep, the USW-Aggregation fits easily into SOHO rack cabinets while maintaining a fanless operation for silent performance. The integrated 1.3-inch LCM color touchscreen provides immediate access to key system and connection insights directly on the device. This compact form factor (442.4 x 120 x 43.7 mm) makes it ideal for space-constrained environments without sacrificing performance.

High-Performance Specifications

The switch delivers a forwarding rate of 119.04 Mpps with maximum power consumption of just 30W. The internal 36W AC/DC power supply accepts universal AC input (100-240VAC, 50/60 Hz), ensuring compatibility across different power standards. ESD/EMP protection (Air: ±16kV, Contact: ±12kV) provides robust protection for your network infrastructure.

Flexible SFP+ Module Support

The USW-Aggregation supports multiple SFP+ module configurations: up to 8x UACC-OM-MM-10G multimode modules, 8x UACC-OM-SM-10G single-mode modules, or 4x UACC-CM-RJ45-10G copper modules. This flexibility allows you to configure the switch according to your specific network requirements and cable infrastructure.

Intuitive Management and Monitoring

Manage and monitor the switch from anywhere using the UniFi Network Controller. The ethernet in-band management interface provides seamless integration into your UniFi ecosystem. Status LEDs provide clear visual feedback: the system LED shows bootup animation, firmware upgrades, adoption status (steady white for factory defaults, steady blue when adopted), while SFP+ port LEDs indicate 1/10G connections in white.

Specifications

Hardware

Total Non-Blocking Throughput
80 Gbps

Switching Capacity
160 Gbps

Forwarding Rate
119.04 Mpps

Max Power Consumption
30W

Power Method
Universal AC Input: 100-240VAC, 50/60 Hz

Power Supply
AC/DC, Internal, 36W

Management Interface
Ethernet In-Band

Modes
SMB Layer 2 Gigabit Ethernet Switch

Max. Number of Supported SFP+ Modules
UACC-OM-MM-10G - 8
UACC-OM-SM-10G - 8
UACC-CM-RJ45-10G - 4

ESD/EMP Protection
Air: ± 16kV, Contact: ± 12kV

Operating Temperature
-5 to 40° C (23 to 104° F)

Operating Humidity
10 to 90% Noncondensing

Certifications
CE, FCC, IC

LEDs

System
(1) Bootup Animation: Bootup in Progress
Firmware Upgrade Icon: Firmware Upgrading
Steady White: Factory Defaults, Awaiting Adoption
Steady Blue: Device is Adopted

SFP+
White: 1/10G

Packaging

Weight
Without Mount: 2.65 kg (5.84 lb)
With Mount: 2.74 kg (6.04 lb)

Dimensions
442.4 x 120 x 43.7 mm (17.42 x 4.72 x 1.72")

Enclosure Material
SGCC Steel

Warranty
1 Year

• Speed: 10G
• Ports: 8
• POE Capability: No
• Managed or Unmanaged: Managed
• Rack Mountable: Yes
