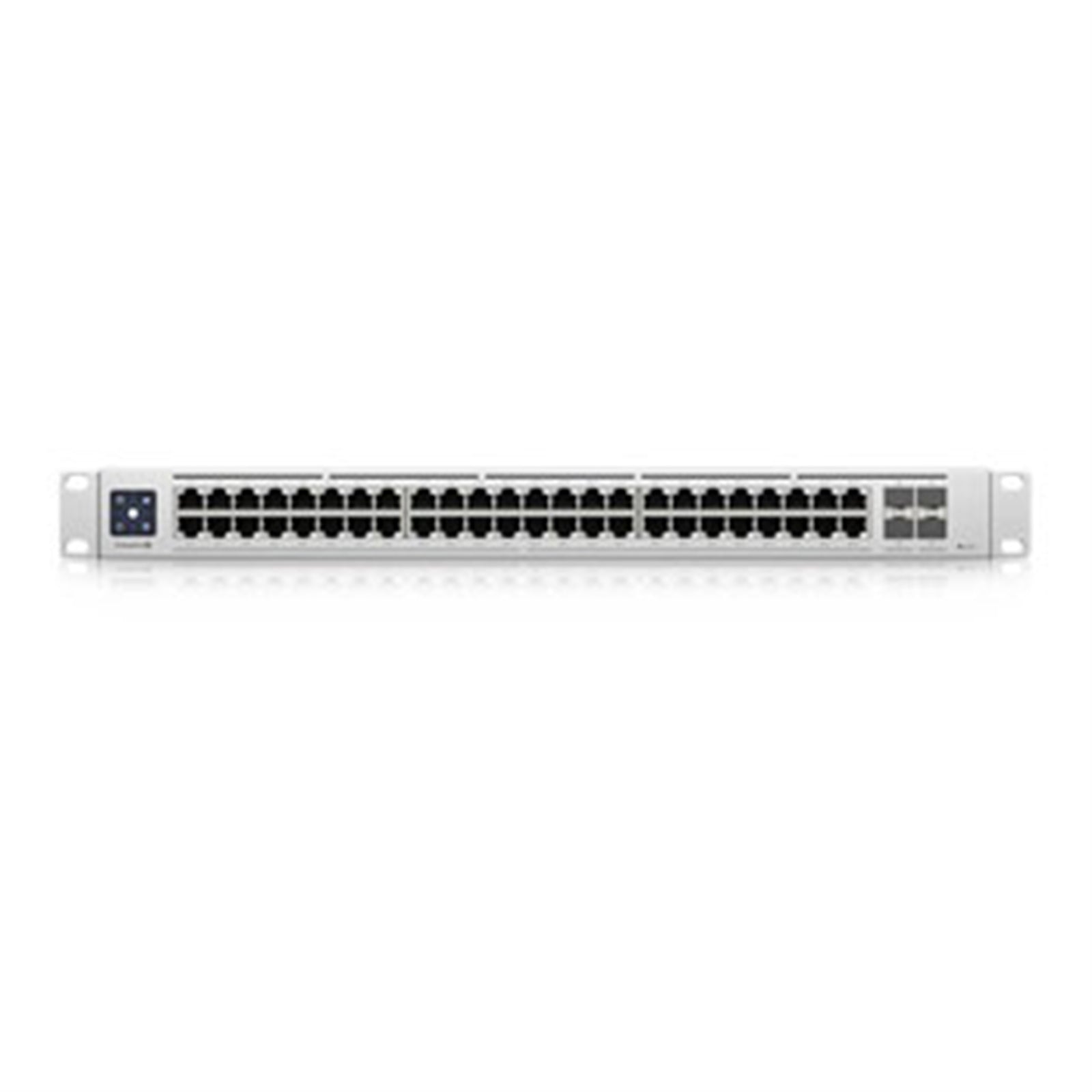

Ubiquiti USW-Enterprise-48-PoE UniFi Layer 3 Managed Switch

The Ubiquiti USW-Enterprise-48-PoE delivers enterprise-grade Layer 3 switching with 2.5-Gigabit PoE+ capability across all 48 ports. Designed for high-density WiFi 6 deployments and modern network infrastructures, this managed rackmount switch provides 720W total PoE budget with auto-sensing 802.3at PoE+ support.

High-Performance Connectivity

Equipped with forty-eight 2.5GbE RJ45 ports and four 10GbE SFP+ ports, the USW-Enterprise-48-PoE supports 320 Gbps switching capacity and 160 Gbps non-blocking throughput. Each PoE+ port delivers up to 34.2W, providing sufficient power for WiFi 6 access points, IP cameras, and VoIP devices. The four 10GbE SFP+ ports enable high-speed fiber uplinks for backbone connectivity.

Layer 3 Switching Capabilities

This configurable Layer 3 switch supports advanced routing protocols and features operation mode configuration per port, including switching, mirroring, and aggregate modes. The 238.095 Mpps forwarding rate ensures efficient packet processing for demanding network environments.

UniFi Network Integration

Fully managed through the UniFi Network application and mobile app, the USW-Enterprise-48-PoE integrates seamlessly into UniFi ecosystems. Configure and monitor all switch features through an intuitive graphical interface from anywhere. The 1.3-inch touch LCM provides on-device management with AR switch management capabilities. Remote firmware upgrades, guest portal support, and centralized user management streamline network administration.

Redundant Power and Reliability

USP RPS support enables redundant power backup configuration for critical network uptime (RPS unit sold separately). The SGCC metal construction ensures durability in rack-mounted installations. Maximum power consumption excluding PoE output is 150W.

Technical Specifications

• Network Ports: 48x 2.5GbE RJ45 PoE+, 4x 10GbE SFP+
• PoE Budget: 720W total, 34.2W per port maximum
• Switching Capacity: 320 Gbps
• Forwarding Rate: 238.095 Mpps
• Standards: IEEE 802.3af/at
• Management: UniFi Network Application, Mobile App, Touch LCM

The USW-Enterprise-48-PoE is the ideal solution for organizations deploying high-density wireless networks, requiring Layer 3 routing capabilities, and needing centralized management through the UniFi ecosystem.
