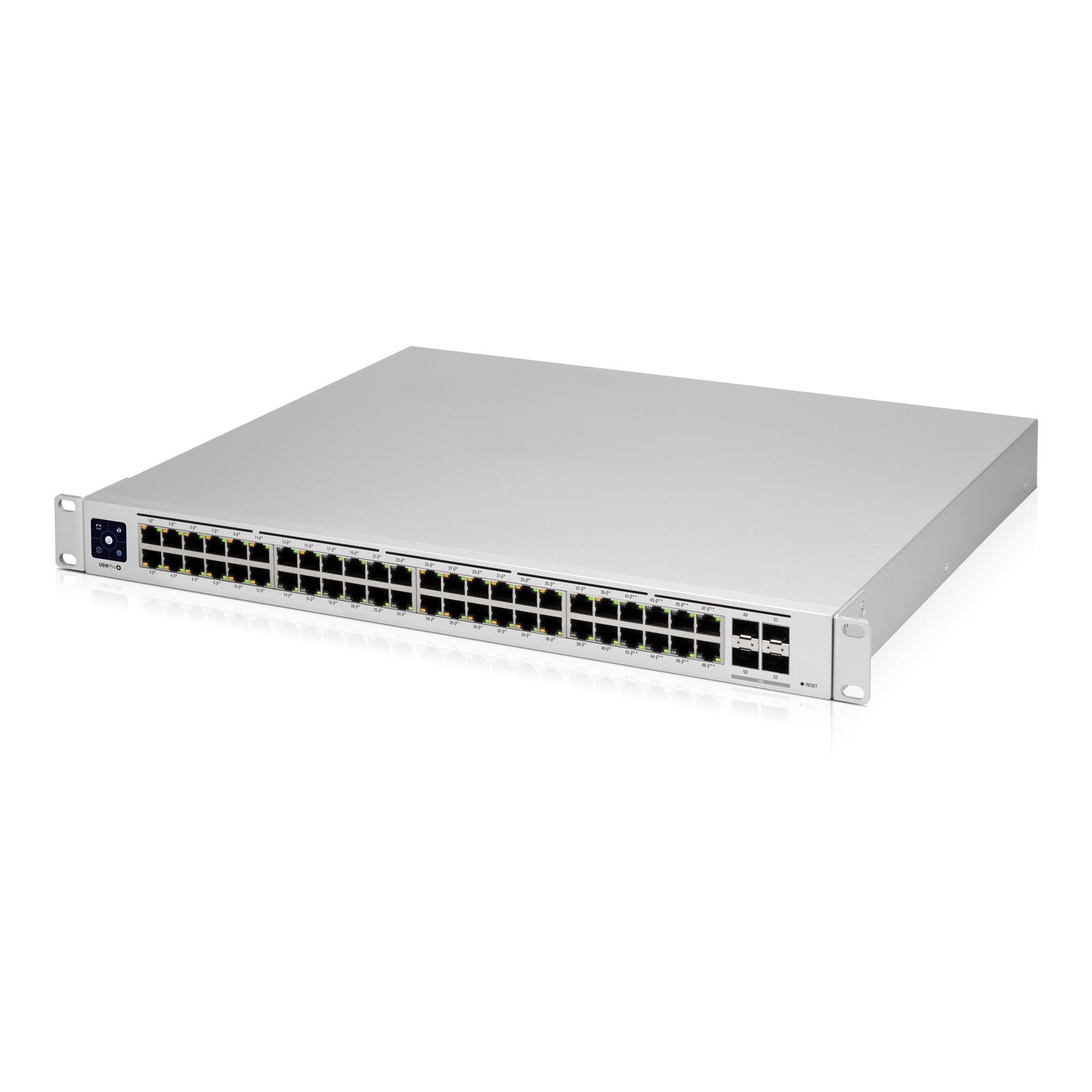

Ubiquiti USW-PRO-48-POE UniFi Gen2 48-Port Managed Network Switch

The UniFi Switch Pro 48 PoE delivers professional-grade network switching with 48 Gigabit Ethernet ports and 600W total PoE power budget. This fully managed Layer 3 switch combines high-density PoE connectivity with advanced routing capabilities for enterprise and business networks.

PoE Power Distribution

Equipped with 40 ports supporting 802.3at PoE+ and 8 ports supporting 802.3bt PoE++, this switch provides flexible power delivery for IP cameras, wireless access points, VoIP phones, and other network devices. The 600W maximum PoE power budget ensures reliable operation of power-hungry devices across your network infrastructure.

High-Speed Uplinks and Connectivity

Four 10GB SFP+ ports provide high-bandwidth uplink connections with link aggregation support for increased capacity and network availability. The combination of 48 Gigabit RJ45 ports and 10G SFP+ uplinks makes this switch ideal as an access layer solution in UniFi network deployments.

Layer 3 Routing Capabilities

Beyond standard Layer 2 switching features, the USW-PRO-48-POE integrates Layer 3 functionality including inter-VLAN routing, static routing, and DHCP server capabilities. This allows network segmentation and routing without requiring additional hardware, simplifying network architecture.

Centralized Management

Managed through the UniFi Network Controller and UniFi Network mobile app, administrators can configure and monitor all switch features from an intuitive graphical interface. The 1.3-inch touchscreen display provides at-a-glance status information and local management access.

Reliable Operation

Near-silent cooling keeps the switch operating quietly in noise-sensitive environments. UniFi SmartPower RPS DC input support provides power redundancy options for mission-critical deployments. The rack-mountable design fits standard 19-inch racks with dimensions of 442.4 x 399.6 x 43.7 mm.

Technical Specifications

Port Configuration:
• 8 Gigabit RJ45 802.3bt PoE++ ports
• 40 Gigabit RJ45 802.3at PoE+ ports
• 4x 10G SFP+ ports

Power:
• 600W maximum PoE power
• 100-240VAC/50-60 Hz input
• 52VDC, 11.54A; 11.5VDC, 5.22A
• AC/DC Internal 120W

Physical:
• Dimensions: 442.4 x 399.6 x 43.7 mm (17.42 x 15.73 x 1.72")
• Weight: 6.25 kg (13.78 lb)

Management:
• Ethernet In-Band management
• UniFi Network Controller compatible
• 1.3" touchscreen display

• Speed: Gigabit
• Ports: 48
• POE Capability: 24/48v
• Managed or Unmanaged: Managed
• Rack Mountable: Yes
