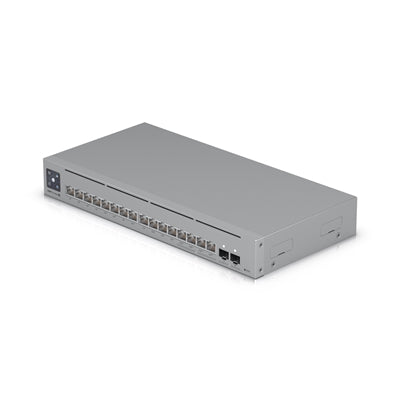

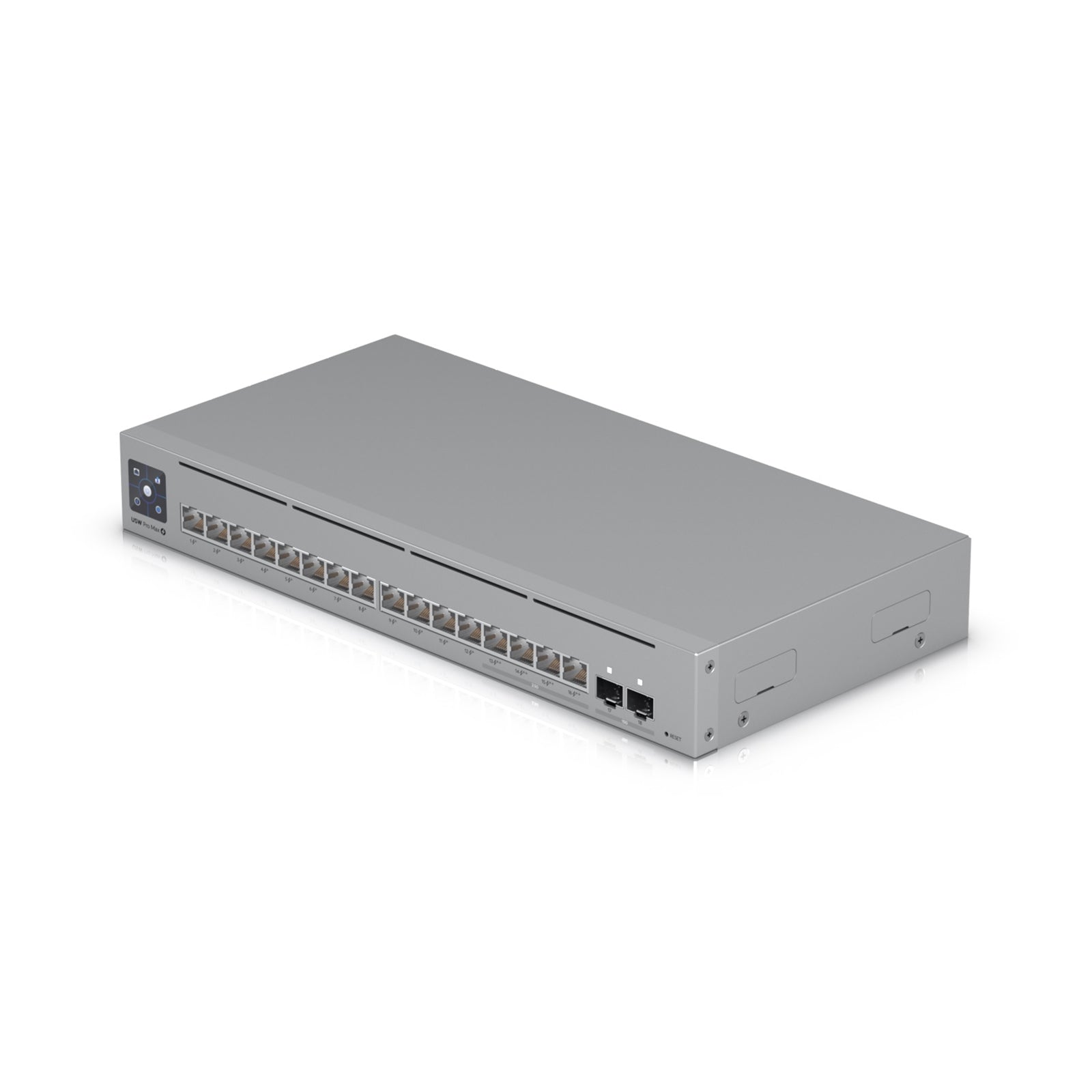

Ubiquiti USW-PRO-MAX-16-POE UniFi Pro Max Switch

The Ubiquiti USW-PRO-MAX-16-POE delivers advanced Layer 3 switching capabilities in a compact, fanless design. This 16-port managed switch combines high-performance networking with intelligent power distribution, making it suitable for enterprise deployments requiring both speed and flexibility.

High-Speed Connectivity Options

Equipped with (4) 2.5 GbE PoE++ ports and (12) GbE PoE+ ports, this switch provides versatile connectivity for modern network devices. The inclusion of (2) 10G SFP+ uplink ports ensures high-bandwidth connections to your core network infrastructure. With 42 Gbps non-blocking throughput and 84 Gbps switching capacity, the USW-PRO-MAX-16-POE handles demanding network traffic without bottlenecks.

Advanced PoE Power Distribution

The switch offers 180W total PoE availability across its ports, with 60W PoE++ capability on the four 2.5 GbE ports and standard PoE+ on the twelve gigabit ports. This power budget supports high-consumption devices like PTZ cameras, access points, and VoIP phones simultaneously. Individual port power delivery ranges from 15.4W (PoE) to 60W (PoE++) depending on device requirements.

Etherlighting Technology

Etherlighting ports provide visual indicators for port location, speed/link status, and native VLAN/network assignment. This feature simplifies network troubleshooting and cable management in rack environments or wall-mounted installations.

Layer 3 Routing Capabilities

Beyond standard Layer 2 switching, this device includes Layer 3 features such as inter-VLAN routing between networks on the same switch, static routing between local networks, DHCP relay, and network isolation with ACLs. These capabilities reduce the need for separate routing hardware in many deployment scenarios.

Comprehensive Layer 2 Features

The switch supports IGMP snooping, STP/RSTP, port isolation, storm control, voice VLAN, port mirroring, LACP port aggregation, 802.1X control, jumbo frames, DHCP snooping, LLDP-MED, and device isolation with ACLs. These features provide granular control over network traffic and security.

Silent Operation and Flexible Mounting

The fanless cooling system ensures completely silent operation, making the switch appropriate for noise-sensitive environments. Versatile mounting options include desktop placement, wall mounting, and rack installation with an optional rack mount kit. The compact dimensions of 325.1 x 160 x 43.7 mm allow installation in space-constrained locations.

Management and Specifications

Managed through the UniFi Network Controller via Ethernet in-band connection, the switch integrates seamlessly into existing UniFi ecosystems. The 1.3" touchscreen LCM display provides local status information and configuration options. Built with SGCC steel construction, the unit weighs 2.1 kg and operates in ambient temperatures from -5 to 40°C with 10-90% noncondensing humidity tolerance.

Dimensions
325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7")

Weight
2.1 kg (4.6 lb)

Enclosure Material
SGCC steel

Management Interface
Ethernet In-Band

Networking Interface
(12) GbE RJ45 ports
(4) 1/2.5 GbE RJ45 ports
(2) 10G SFP+ ports

POE Interface
(12) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(4) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)

Total Non-Blocking Throughput
42 Gbps

Switching Capacity
84 Gbps

Forwarding Rate
62.496 Mpps

Power Method
DC adapter

Power Supply
54V, 210W

Max Power Consumption
30W (Excluding PoE output)

Total Available POE
180W

Max POE Wattage per Port by PSE
PoE: 15.4W
PoE+: 30W
PoE++: 60W

Voltage Range POE Mode
PoE: 44—57V
PoE+/PoE++: 50—57V

LCM Display
(1) 1.3" touchscreen

Button
Factory reset

Ambient Operating Temperature
-5 to 40° C (23 to 104° F)

Ambient Operating Humidity
10 to 90% noncondensing

Certifications
CE, FCC, IC

Layer 2 Features
IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs

Layer 3 Features
DHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks
Network isolation with ACLs

• Speed: Gigabit
• Ports: 16
• POE Capability: 48v
• Managed or Unmanaged: Managed
• Rack Mountable: Optional - Kit Required
