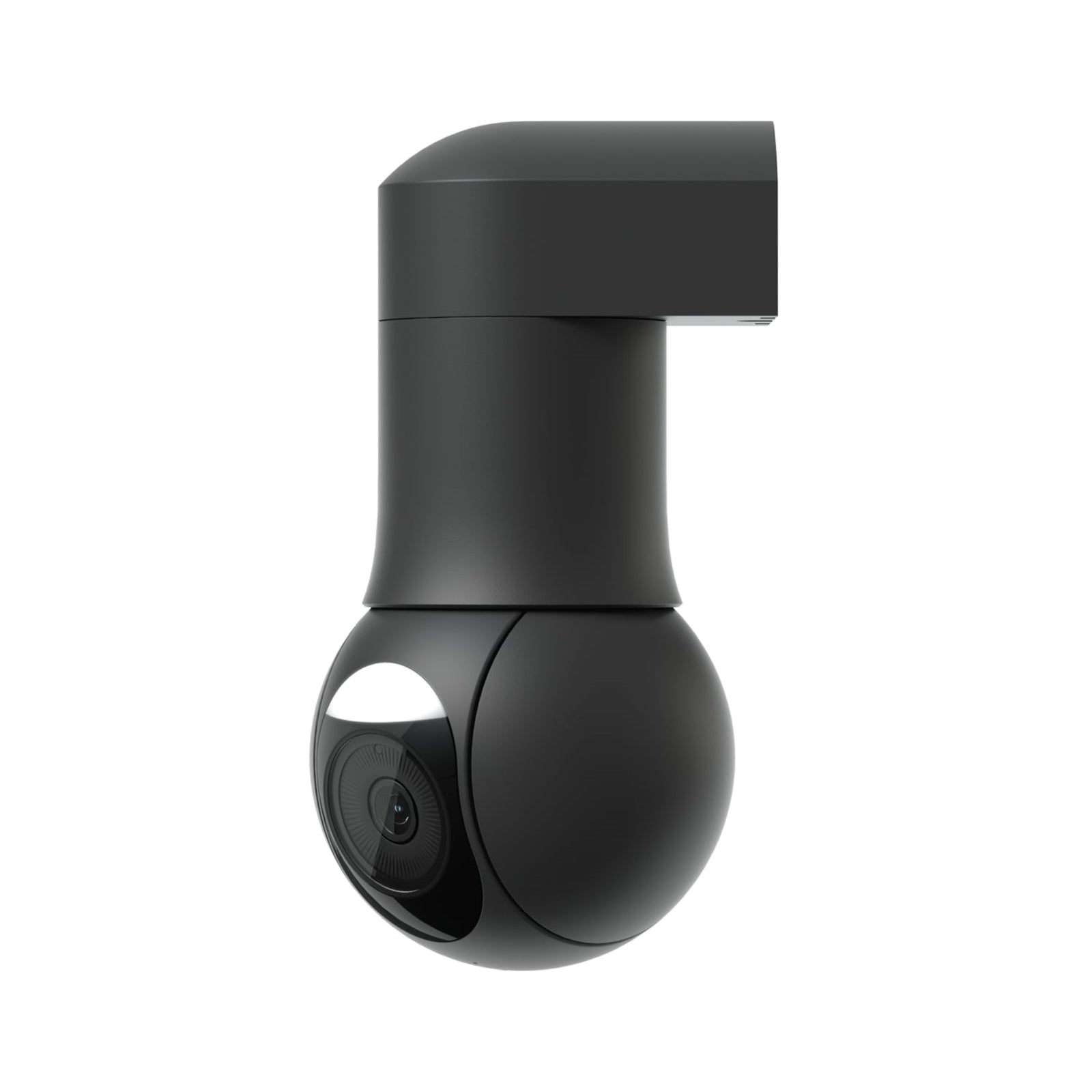

Ubiquiti UVC-G5-PTZ G5 Compact All-Weather Pan Tilt Zoom Camera

The Ubiquiti UVC-G5-PTZ delivers professional-grade surveillance with ultra-low latency pan-tilt-zoom control in a compact, weather-resistant design. This 2K resolution camera provides precise monitoring with optical zoom capabilities and intelligent detection features for comprehensive security coverage.

2K Video Quality with Optical Zoom

Capture detailed footage with 4MP resolution at 2688 x 1512 pixels, recording at up to 30 FPS. The 5MP 1/2.7" CMOS sensor paired with F 3.42–6.85 mm lens delivers clear images across varying field of view settings. Wide mode offers 99.7° horizontal and 51.9° vertical coverage, while telephoto mode provides focused 45.5° horizontal and 25.4° vertical views for targeted surveillance.

All-Weather Durability

Built with aluminum alloy and polycarbonate construction, the UVC-G5-PTZ achieves IP66 weatherproofing for reliable operation in rain, snow, and extreme temperatures. IK04 tamper resistance protects against physical interference. The compact design measures 90 x 152.5 mm without mount, weighing just 580g for easy installation.

Advanced Night Vision and Detection

Built-in IR and white LED illumination with IR cut filter enables clear night vision up to 20 meters. Smart detection technology identifies people, vehicles, and animals, reducing false alerts and streamlining security monitoring through the UniFi Protect application.

Flexible Installation Options

Includes wall mount and pole mount (38-50mm diameter) for versatile deployment. Optional accessories support conduit adapter, surface, in-ceiling, pendant, and corner mounting configurations. The integrated microphone captures audio alongside video for complete situational awareness.

Technical Specifications

Powered by PoE+ (37-57V DC) with 14W maximum consumption through a 10/100 Mbps Ethernet connection. Factory-reset button allows quick reconfiguration when needed.

Specifications

Dimensions
Without mount: d90 x 152.5 mm
(d3.5 x 6")

With mount: 90 x 94 x 179.5 mm
(3.5 x 3.7 x 7")

IR Night Vision
20 m (65 ft)

Optical Zoom
2K

Smart Detections (People, Vehicles, Animals)
Yes

Resolution
2K

Field of View
Wide: H: 99.7d, V: 51.9d, D: 121d
Tele: H: 45.5d, V: 25.4d, D: 52.4d

Audio
Microphone

Weatherproofing
IP66

Tamper Resistance
IK04

Mounting
Wall mount, pole mount (Included)
Conduit adapter, surface, in-ceiling, pendant, corner mount (Optional)

UniFi Application Suite
Protect

Networking Interface
10/100 MbE RJ45 Port

Video
Max Frame Rate: 30 FPS
Resolution: 4MP 2688 x 1512 (16:9)

Optics
Sensor: 5MP 1/2.7" CMOS
Lens: F 3.42–6.85 mm; ƒ/1.85–ƒ/2.4
Night Mode: Built-in IR & white LED illumination with IR cut filter

Hardware

Max. Power Consumption
14W

Supported Voltage Range
37 - 57V DC

Power Method
PoE+

Pole Mount Diameter
1.5–2" (38–50 mm)

Weight
Without mount: 580 g (1.3 lb)
With mount: 650 g (1.4 lb)

Enclosure Material
Aluminum alloy, polycarbonate

Mount Material
Wall mount: polycarbonate
Pole mount: aluminum alloy

Button
(1) Factory-reset

• Camera Resolution: 2688x1512
• Camera Type: PTZ
• POE Capability: 48v
• Pack Size: Single
