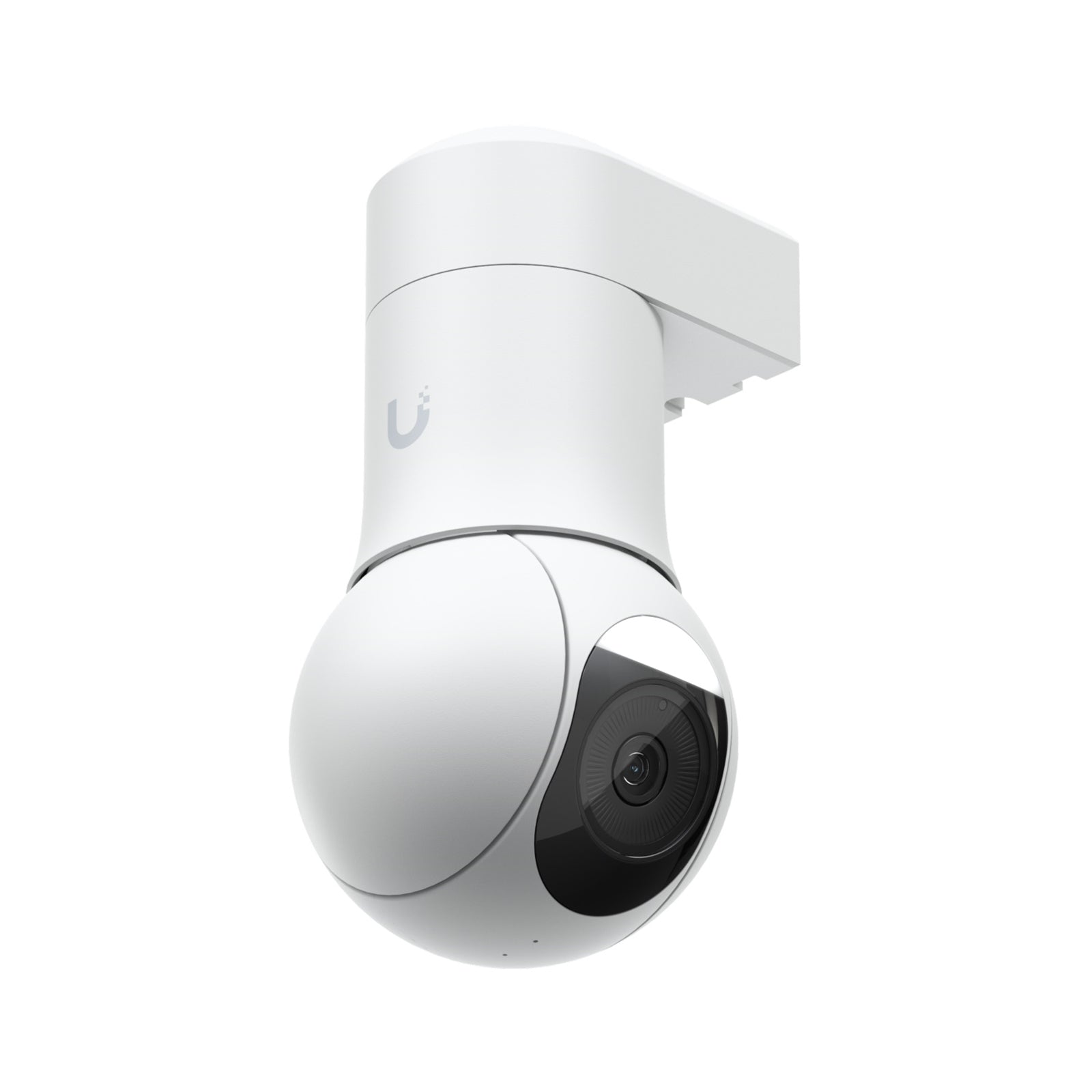

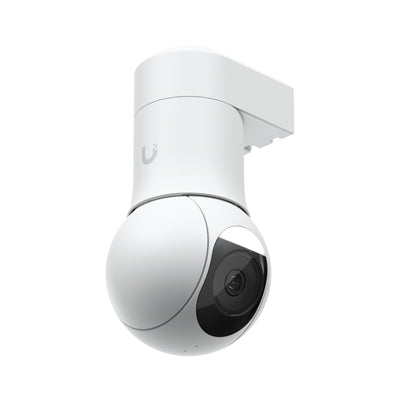

Ubiquiti UVC-G5-PTZ G5 Compact PTZ Security Camera

The Ubiquiti UVC-G5-PTZ delivers professional-grade surveillance with ultra-low latency pan-tilt-zoom control in a compact, weather-resistant design. This 2K resolution camera provides precise monitoring with optical zoom capabilities and intelligent detection features for comprehensive security coverage.

2K Video Quality with Optical Zoom

Capture detailed 4MP video at 2688 x 1512 resolution with 30 FPS performance. The optical zoom lens (F 3.42–6.85 mm) transitions from wide-angle monitoring (99.7° horizontal) to telephoto focus (45.5° horizontal), providing flexible surveillance options without sacrificing image quality. The 5MP 1/2.7" CMOS sensor ensures sharp, clear footage in various lighting conditions.

Smart Detection Technology

Built-in AI-powered detection identifies people, vehicles, and animals, reducing false alerts and enabling targeted monitoring. The intelligent detection system integrates seamlessly with UniFi Protect for advanced surveillance management and automated notifications.

Day and Night Surveillance

Equipped with built-in IR and white LED illumination, the UVC-G5-PTZ provides effective night vision up to 20 meters (65 feet). The automatic IR cut filter ensures optimal image quality in both daylight and low-light environments, maintaining 24/7 security coverage.

All-Weather Durability

IP66 weatherproof rating and IK04 tamper resistance protect against rain, dust, and physical impact. The aluminum alloy and polycarbonate construction withstands harsh outdoor conditions while maintaining reliable operation in temperatures from extreme cold to heat.

Flexible Installation Options

Includes wall mount and pole mount (1.5–2" diameter) for immediate deployment. Optional accessories support conduit adapter, surface, in-ceiling, pendant, and corner mounting configurations. The compact design (90 x 94 x 179.5 mm with mount) fits various installation locations.

PoE+ Powered Connectivity

Single-cable installation via PoE+ (37-57V DC) simplifies deployment while delivering up to 14W power. The 10/100 Mbps Ethernet interface ensures reliable network connectivity for live streaming and recording to UniFi Protect.

Compact, all-weather camera with ultra-low latency pan-tilt-zoom control and versatile mounting options.

Specifications

Dimensions
Without mount: d90 x 152.5 mm
(d3.5 x 6")

With mount: 90 x 94 x 179.5 mm
(3.5 x 3.7 x 7")

IR Night Vision
20 m (65 ft)

Optical Zoom
2K

Smart Detections (People, Vehicles, Animals)
Yes

Resolution
2K

Field of View
Wide: H: 99.7d, V: 51.9d, D: 121d
Tele: H: 45.5d, V: 25.4d, D: 52.4d

Audio
Microphone

Weatherproofing
IP66

Tamper Resistance
IK04

Mounting
Wall mount, pole mount (Included)
Conduit adapter, surface, in-ceiling, pendant, corner mount (Optional)

UniFi Application Suite
Protect

Networking Interface
10/100 MbE RJ45 Port

Video
Max Frame Rate: 30 FPS
Resolution: 4MP 2688 x 1512 (16:9)

Optics
Sensor: 5MP 1/2.7" CMOS
Lens: F 3.42–6.85 mm; ƒ/1.85–ƒ/2.4
Night Mode: Built-in IR & white LED illumination with IR cut filter

Hardware

Max. Power Consumption
14W

Supported Voltage Range
37 - 57V DC

Power Method
PoE+

Pole Mount Diameter
1.5–2" (38–50 mm)

Weight
Without mount: 580 g (1.3 lb)
With mount: 650 g (1.4 lb)

Enclosure Material
Aluminum alloy, polycarbonate

Mount Material
Wall mount: polycarbonate
Pole mount: aluminum alloy

Button
(1) Factory-reset

• Camera Resolution: 2688x1512
• Camera Type: PTZ
• POE Capability: 48v
• Pack Size: Single
